Thermoplastic elastomers are the backbone of modern flexible product manufacturing — from athletic footwear to automotive seals and medical devices. Among the most frequently compared materials are Thermoplastic Polyurethane (TPU) and Thermoplastic Elastomer (TPE). Although TPU is technically a subclass of the broader TPE family, the two differ dramatically in structure, performance, and ideal application. Choosing the wrong material can mean compromised product durability, inflated production costs, or failed regulatory compliance. This guide breaks down every critical dimension so you can make the right call.
What Is TPU? Understanding the High-Performance Benchmark
Thermoplastic Polyurethane (TPU) is a block copolymer elastomer built from alternating hard segments (typically urethane groups derived from diisocyanates and chain extenders) and soft segments (polyether or polyester polyols). This precisely engineered segmented architecture is what gives TPU its exceptional combination of mechanical toughness and elastic recovery — properties that generic TPE formulations rarely match.
TPU is available in two principal chemistries: polyether-based TPU (outstanding hydrolysis resistance and low-temperature flexibility, preferred for cables and outdoor applications) and polyester-based TPU (higher mechanical strength and oil resistance, favored in industrial and automotive contexts). The hardness range spans Shore A 60 to Shore D 80, giving formulators extraordinary latitude to tune stiffness without sacrificing elasticity.
Outstanding Abrasion & Tear Resistance
TPU consistently outperforms other elastomers in DIN abrasion tests. Cable jacket grades can withstand tens of thousands of flex cycles without cracking — critical for EV charging cables and industrial drag chains.
High Tensile Strength
Tensile strength typically ranges from 25 to 60 MPa, enabling thin-wall designs that reduce material usage while maintaining structural integrity under load.
Broad Hardness Range
From ultra-soft Shore A 60 gels to rigid Shore D 80 structural grades, a single material platform covers applications from soft-touch grips to load-bearing wheels.
Chemical & Oil Resistance
Polyester TPU grades resist greases, hydraulic fluids, and aliphatic hydrocarbons. Polyether grades excel against water, microbial attack, and polar solvents.
Optical Clarity & Aesthetic Versatility
Many TPU grades are naturally transparent, enabling vibrant coloring without sacrificing clarity — a key advantage for consumer electronics and fashion accessories.
Excellent Elastic Recovery
After deformation, TPU returns to its original shape with minimal permanent set — essential for seals, gaskets, and dynamic mechanical components.
What Is TPE? The Versatile Comfort-First Family
Thermoplastic Elastomer (TPE) is a broad material category rather than a single compound. It encompasses multiple subclasses — including TPS (styrenic block copolymers such as SBS and SEBS), TPO (thermoplastic polyolefins), TPV (thermoplastic vulcanizates), T-PVC (PVC-based blends), and TPU itself. What unites them is the ability to behave like vulcanized rubber at service temperature while processing like a thermoplastic at elevated temperatures.
When industry professionals say “TPE” in a product context, they most commonly refer to SEBS-based compounds (hydrogenated styrene-ethylene-butylene-styrene), which offer superior UV stability and heat resistance compared to SBS. These compounds are widely used in consumer goods, medical device grips, and overmolded handles precisely because they are soft, easy to color, and compatible with a wide range of rigid substrates for two-shot molding.
Soft Touch & Comfort
Shore A hardness as low as 0–5 is achievable with SEBS compounds, delivering a skin-like tactile experience ideal for medical grips, baby products, and ergonomic handles.
Easy Processing & Coloring
TPE compounds typically process at lower temperatures (160–220°C) with wider processing windows than TPU, reducing energy costs and color-matching complexity.
Cost-Effective Formulation
Raw material costs for standard SEBS-based TPE are generally 10–30% lower than comparable TPU grades, making TPE the preferred choice for high-volume, cost-sensitive production.
Recyclability
Like all thermoplastics, TPE can be reground and reprocessed without significant property degradation — supporting circular economy initiatives and reducing production waste.
Overmolding Compatibility
SEBS-based TPE bonds readily to PP, ABS, and PC substrates in two-shot or insert molding processes, enabling ergonomic soft-touch surfaces on rigid housings without adhesives.
Design Freedom
The broad formulation latitude of TPE allows compound manufacturers to tailor hardness, color, surface texture, and regulatory compliance (FDA, RoHS, REACH) for specific end-use requirements.

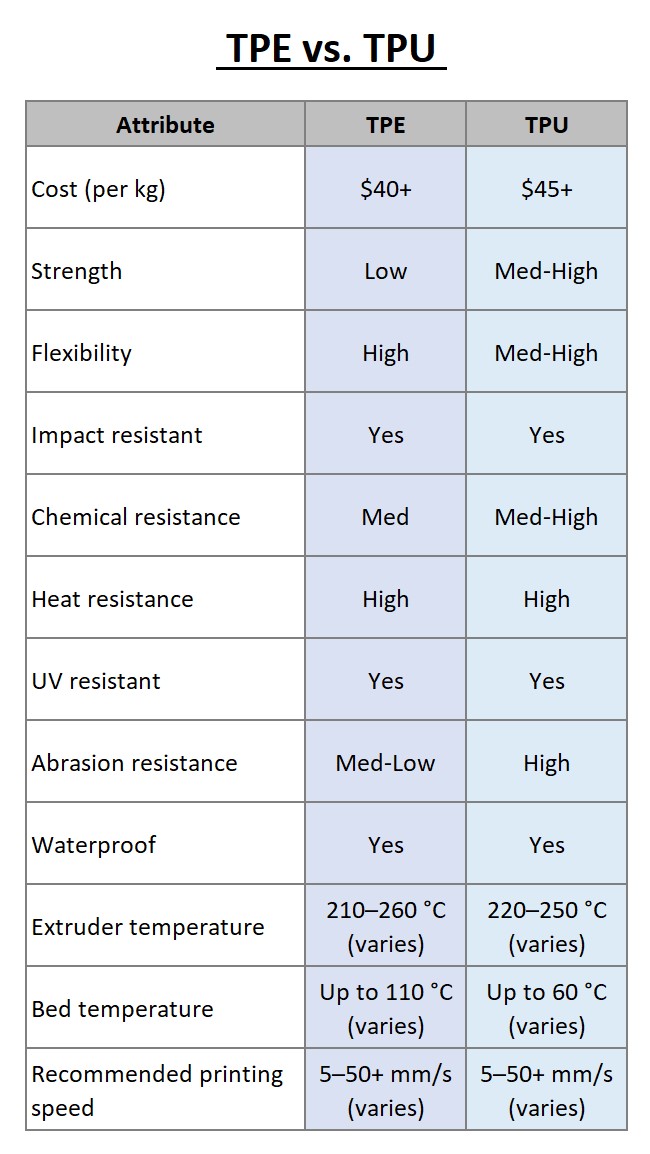

TPU vs TPE: Five Critical Dimensions Compared
While both material families share thermoplastic processability and rubber-like flexibility, they diverge sharply across five dimensions that matter most to product engineers and procurement teams. The table below provides a structured side-by-side comparison, followed by a deeper discussion of each dimension.
| Dimension | TPU | TPE (SEBS-based) | Verdict |
|---|---|---|---|
| Material Structure | Defined segmented polyurethane block copolymer | Broad family; structure varies by subtype | TPU: more predictable performance |
| Abrasion Resistance | Excellent (DIN <50 mm³ typical) | Moderate (varies widely by formulation) | TPU wins for wear-critical parts |
| Tensile Strength | 25–60 MPa | 5–20 MPa | TPU for load-bearing applications |
| Softness / Comfort | Firmer; Shore A 60–Shore D 80 | Ultra-soft; Shore A 0–80 | TPE for ergonomic & comfort products |
| Chemical Resistance | Strong resistance to oils, greases, fuels | Adequate; highly formulation-dependent | TPU for industrial environments |
| Processing Temperature | 190–230°C; tighter control required | 160–220°C; wider processing window | TPE for simpler, lower-cost processing |
| Raw Material Cost | Higher (specialty diisocyanates & polyols) | Lower (commodity-grade SEBS & extenders) | TPE for cost-sensitive volumes |
| UV & Weathering | Requires UV stabilizer additives | SEBS grades inherently UV-stable | TPE (SEBS) for outdoor exposure |
| Overmolding on Rigid Substrates | Limited substrate compatibility | Excellent adhesion to PP, ABS, PC | TPE for two-shot & insert molding |
| Typical Cost (per kg) | $3.50–$6.00+ | $2.50–$4.50 | TPE offers better cost efficiency |
Note: The performance values above represent typical ranges for standard commercial grades. Actual properties depend heavily on specific formulation, processing conditions, and part geometry. Always request material data sheets and conduct application-specific testing before final material selection.
Mechanical Performance: Where TPU Pulls Ahead
The most consequential difference between TPU and TPE lies in mechanical performance under demanding service conditions. TPU’s segmented block copolymer architecture creates a physical cross-link network through hard-segment crystallization, which provides load-bearing capacity and abrasion resistance that SEBS-based TPE cannot replicate without significant reinforcement.
In standardized abrasion testing (DIN 53516), high-performance TPU grades achieve volume loss values below 50 mm³, compared to 80–150 mm³ for typical SEBS-based TPE compounds. This difference translates directly into product lifespan: a TPU cable jacket on an industrial robot arm may last three to five times longer than an equivalent TPE jacket under continuous flexing and abrasion. For footwear outsoles, the gap is similarly pronounced — which is why premium athletic brands universally specify TPU for high-wear zones.
Typical Tensile Strength: TPU: 25–60 MPa | TPE (SEBS): 5–20 MPa
Elongation at Break: TPU: 300–700% | TPE (SEBS): 300–900%
DIN Abrasion (volume loss): TPU: 20–80 mm³ | TPE (SEBS): 80–200 mm³
Hardness Range: TPU: Shore A 60 – Shore D 80 | TPE: Shore A 0 – Shore A 95
Note: Values are indicative for standard commercial grades. Consult supplier datasheets for application-specific grades.
Application Comparison: Matching Material to End Use
The optimal material choice is ultimately dictated by the demands of the specific application. The following breakdown maps each material to its strongest use cases, based on the performance characteristics discussed above.

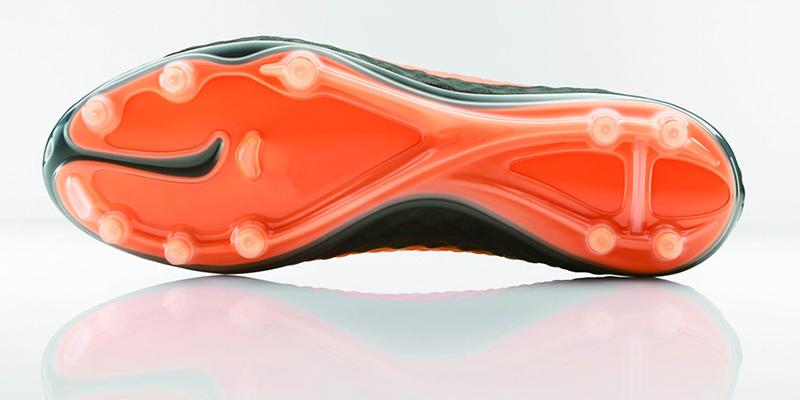

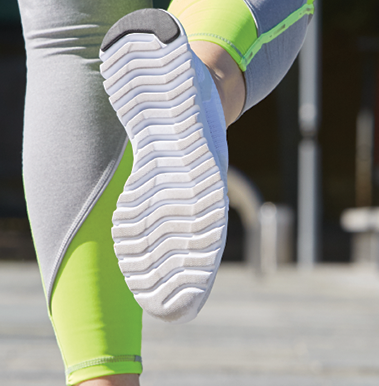

Footwear Soles & Midsoles
Winner: TPU. Superior abrasion resistance, energy return, and durability under repetitive impact loading make TPU the standard for athletic and safety footwear outsoles. TPE is used in budget footwear where cost outweighs performance.
Cable & Wire Jackets
Winner: TPU. Excellent flex fatigue resistance, oil resistance, and flame retardancy (with additives) make TPU the preferred jacket material for EV charging cables, industrial drag chains, and robotic cables.
Automotive Interior Parts
Winner: TPU. Resistance to fuels, hydraulic fluids, and UV (with stabilizers) suits TPU for seals, hoses, and under-hood components. TPE is used for soft-touch interior trim where comfort and aesthetics dominate.

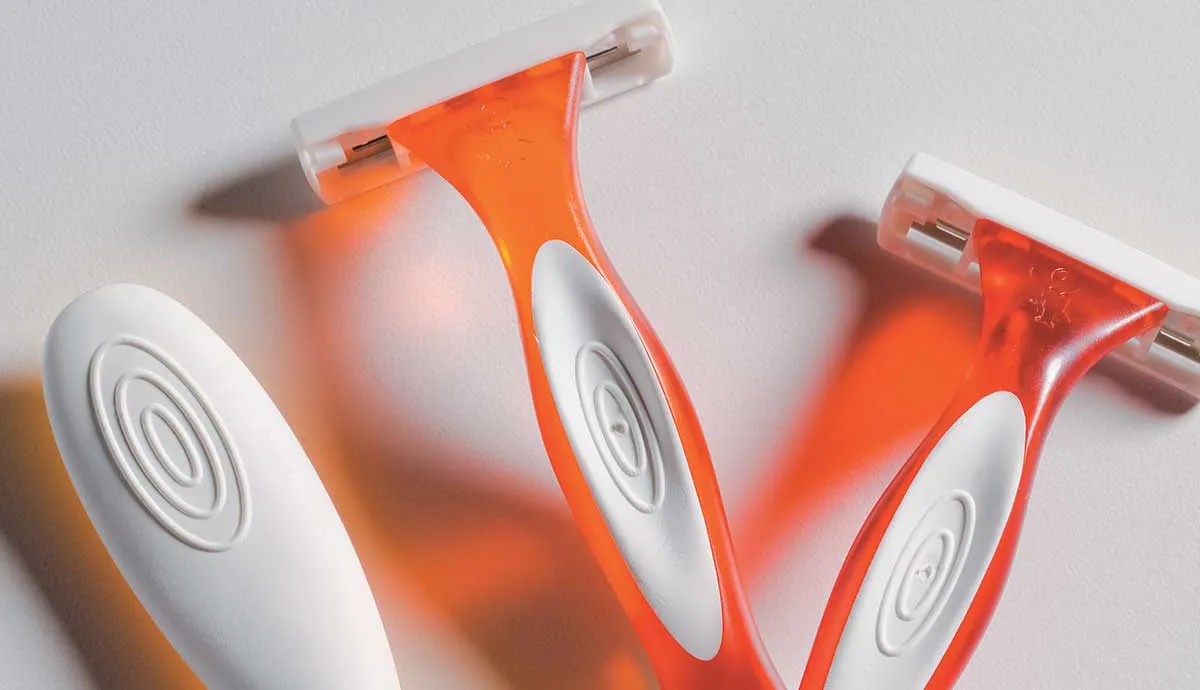

Soft-Touch Grips & Handles
Winner: TPE. Ultra-low hardness, excellent overmolding adhesion to PP and ABS, and skin-safe formulations make SEBS-based TPE the go-to for power tool grips, toothbrush handles, and consumer electronics.
Medical Devices
Winner: Context-dependent. TPU is preferred for catheter tubing and implantable components requiring mechanical strength. TPE (medical-grade SEBS) is chosen for soft grips, closures, and non-implantable contact applications.
Consumer Goods & Packaging
Winner: TPE. Lower cost, easier coloring, and compatibility with recycled PP make TPE the dominant choice for toy components, food-contact seals, and soft packaging elements where extreme durability is not required.
Processing Considerations: Cost, Control, and Compatibility
Both TPU and TPE are compatible with standard thermoplastic processing equipment — injection molding, extrusion, blow molding, and overmolding. However, the two materials differ meaningfully in processing requirements, which has direct implications for production cost and quality consistency.
TPU is hygroscopic and must be dried to a moisture content below 0.02% before processing (typically 2–4 hours at 80–100°C in a dehumidifying dryer). Failure to dry adequately results in hydrolytic degradation during melt processing, manifesting as surface defects, reduced molecular weight, and compromised mechanical properties. TPE compounds, particularly SEBS-based grades, are generally less sensitive to moisture and require shorter or less stringent drying protocols.
TPU Processing Window: Melt Temp: 190–230°C | Mold Temp: 20–60°C | Drying: 80–100°C / 2–4 hrs
TPE (SEBS) Processing Window: Melt Temp: 160–220°C | Mold Temp: 20–50°C | Drying: 70–80°C / 1–2 hrs
Note: Always follow the material supplier’s specific processing recommendations. Actual conditions vary by grade, part geometry, and equipment configuration.
From a tooling and equipment perspective, TPE’s lower processing temperatures and wider processing windows translate to lower energy consumption, reduced screw wear, and fewer process-related defects. For high-volume consumer product manufacturing, these operational advantages compound into significant cost savings over the product lifecycle.
Decision Guide: When to Choose TPU vs TPE
Choose TPU When…
High abrasion resistance is a primary requirement
The product faces continuous mechanical stress or flex fatigue
Oil, fuel, or chemical resistance is essential
Thin-wall design demands high tensile strength
Long product service life justifies higher material cost
Premium product positioning supports a higher price point
Choose TPE When…
Soft touch, comfort, or ergonomics are the primary design drivers
Overmolding onto PP, ABS, or PC substrates is required
Cost efficiency is critical for high-volume production
Inherent UV stability is needed without additional stabilizers
Easy coloring and wide color gamut are important
The application does not involve extreme mechanical or chemical stress
Conclusion
TPU and TPE are not interchangeable — they are complementary materials optimized for fundamentally different performance profiles. TPU is the material of choice when durability, abrasion resistance, tensile strength, and chemical resistance are non-negotiable. It is the engineering-grade solution for cables, footwear, automotive components, and any application where product failure carries significant consequences. TPE, particularly SEBS-based compounds, excels when softness, overmolding compatibility, ease of processing, and cost efficiency are the governing criteria — making it the preferred platform for consumer goods, ergonomic grips, and comfort-focused applications.
The right choice is never purely about material cost per kilogram. It must account for total cost of ownership, including processing efficiency, scrap rates, product lifespan, and the cost of failure in service. A thorough understanding of both material families — and their specific grade-level properties — is the foundation of sound material selection.
